REEFS RC 1400 Smart 16.8V Brushless Servo
The strongest direct power yet! 1400oz of Torque at 16.8v!
SPECIFICATIONS:
- High Torque High Speed Brushless SERVO or WINCH
- Comes as SERVO out of the Box, can be changed to WINCH with the REEFS LINK V2 (Sold separately) and Software.
- BUILT IN PREPROGRAMMED WINCH CONTROLLER
- SUBMARINE WATERPROOF: 7 Point Seals w/ HEAT SINK
- Military Grade Construction
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- 4 Pole Brushless Motor
- Voltage: 10V - 16.8V
- Internal: Steel Gears / All CNC Aluminum Casing
- Bearing Type: 4 Ball Bearings / Weight: 3.19oz / 90gm

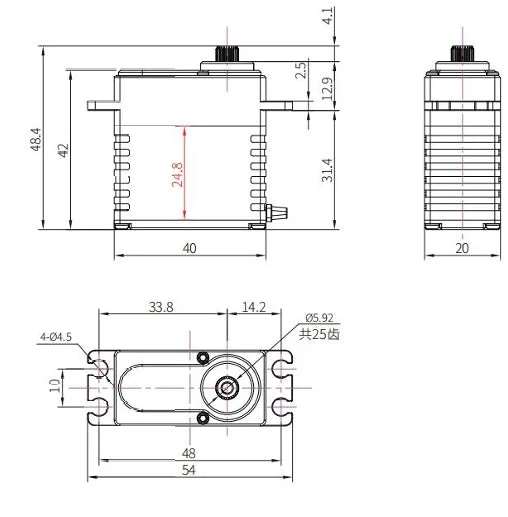

- Dimension: 1.57 x .79 x 1.5 (LWH) / 40x20x42mm
- Torque: 1140oz @ 12.6v/ 1223oz @14.4v / 1400oz @16.8v
- [email protected] / [email protected] / [email protected]
- Speed: .15sec @ 12.6v / .13sec @ 14.4v / .11sec @ 16.8v
- Spline: 25T
- Dead Band Width: 2¦Ìs
- Unload Current:
- [email protected]
[email protected]
[email protected]
[email protected]
[email protected] - Load Current:
- [email protected]
[email protected]
[email protected]
[email protected]
[email protected]
$66.50
Original: $189.99
-65%REEFS RC 1400 Smart 16.8V Brushless Servo—
$189.99
$66.50
Description
The strongest direct power yet! 1400oz of Torque at 16.8v!
SPECIFICATIONS:
- High Torque High Speed Brushless SERVO or WINCH
- Comes as SERVO out of the Box, can be changed to WINCH with the REEFS LINK V2 (Sold separately) and Software.
- BUILT IN PREPROGRAMMED WINCH CONTROLLER
- SUBMARINE WATERPROOF: 7 Point Seals w/ HEAT SINK
- Military Grade Construction
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- 4 Pole Brushless Motor
- Voltage: 10V - 16.8V
- Internal: Steel Gears / All CNC Aluminum Casing
- Bearing Type: 4 Ball Bearings / Weight: 3.19oz / 90gm
- Dimension: 1.57 x .79 x 1.5 (LWH) / 40x20x42mm
- Torque: 1140oz @ 12.6v/ 1223oz @14.4v / 1400oz @16.8v
- [email protected] / [email protected] / [email protected]
- Speed: .15sec @ 12.6v / .13sec @ 14.4v / .11sec @ 16.8v
- Spline: 25T
- Dead Band Width: 2¦Ìs
- Unload Current:
- [email protected]
[email protected]
[email protected]
[email protected]
[email protected] - Load Current:
- [email protected]
[email protected]
[email protected]
[email protected]
[email protected]
