FURITEK MONSTER BRUSHLESS POWER SYSTEM FOR TRX-4M
Introducing the Furitek MONSTER brushless power system for TRX-4M monster truck conversion version, the system includes the FURITEK Greyhound 1410 7500kv with small size yet very powerful and fast and a Lizard Pro esc. The motor is designed with high power for the monster truck with a special firmware from the Lizard Pro ESC. This power system is a complete drop-in combo for TRX-4M Monster Truck conversion version.
With Furitek FURICAR mobile phone app and Bluetooth module, users can set up any parameters on the run without touching the truck, creating seamless adjustments for your favorite settings.
Features:
- A small yet powerful GREYHOUND 1410 7500KV
- High performance and powerful 30A/50A brushless ESC with FOC technology
- Bluetooth module built-in for wireless connection
- Precision CNC steel pinion for long-lasting operation
- Lifetime FREE firmware upgrade!
Package includes:

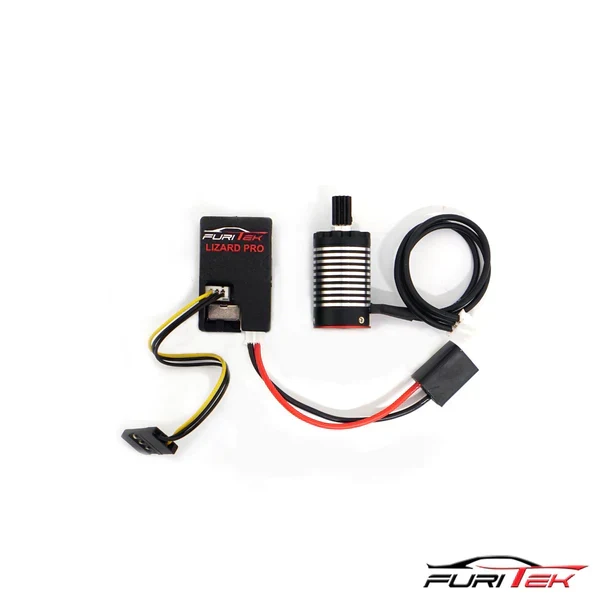

1 x LIZARD PRO 30A/50A BRUSHED/BRUSHLESS ESC FOR TRX-4M WITH FOC TECHNOLOGY with enclosing plastic case
1 x built-in Bluetooth module
1 x GREYHOUND 1410 7500KV brushless motor
1 x CNC Steel Pinion
Motor Features and Specs
Features:
- Super thin (0.2 mm) stator laminations---lower eddy losses---maximizes efficiency.
- Japansese NMB --High RPM ABEC5 bearings.
- Precision balanced rotor, smoothness for best reliability and maximum RPM.
- CNC machined 6061 T6 billet aluminum heatsink can.
- Precision engineered for maximum energy conversion.
- High purity and higher temperature single copper windings, lower copper losses,
very good heat dissipating, maximizes efficiency.
Specifications:
- KV (RPM/Motor) – 7500
- No-load current @7.4V – 0.3A
- Watt – 80W
- Battery – 2-3S
- Resistance – 0.7 Ohms
- Max Current – 9A
- Slot/Pole – 2P
- Motor size (mm) – 15.5x25
- Weight (g) – 17g
ESC Features and Specs
Features:
- Support sensorless brushless DC and brushed DC motor (config via app, default is brushless)
- FOC (Field-oriented control) technology
- Plug & Play designed for TRX-4M monster truck
- 5V/ 6.5V 2.5A Built-in BEC (config via app)
- Support 2S-3S lipo battery
- Mini size and lightweight
- Super easy programming via App on both Android and IOS
- Firmware update available
- Real-time telemetry up to 10Hz
Specifications:
- Support 2S-3S lipo battery
- BIG BEC: 5V or 6.5V 2.5A (No additional BECs necessary when using big Servos)
- Constant current: 30A
- Burst current: 50A
- Built-in power switch
- Built-in bluetooth module
- Dimension (mm): 28(L)x 15.5(W)
- Weight: 3.7 gram
Extra requirements:
- A new two-channel radio system is required
