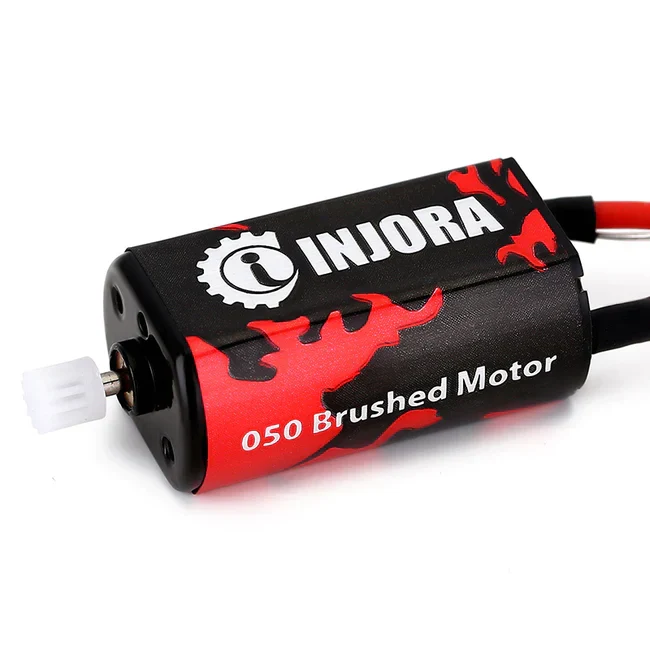

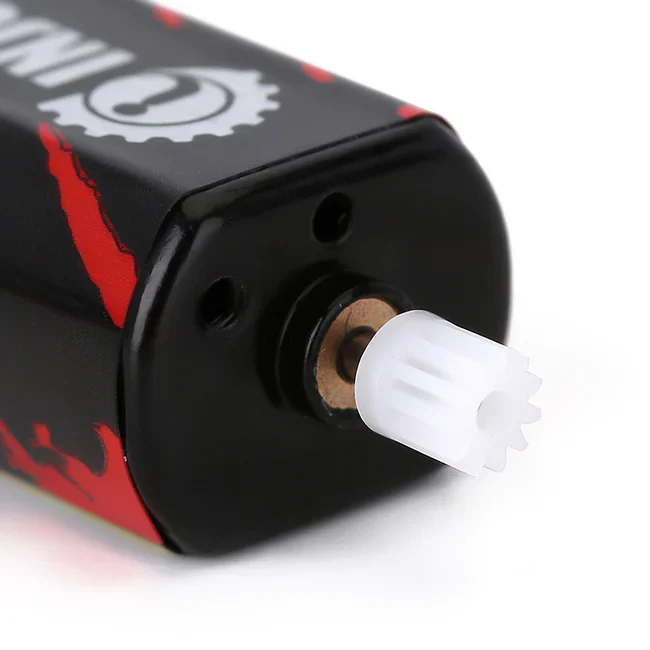

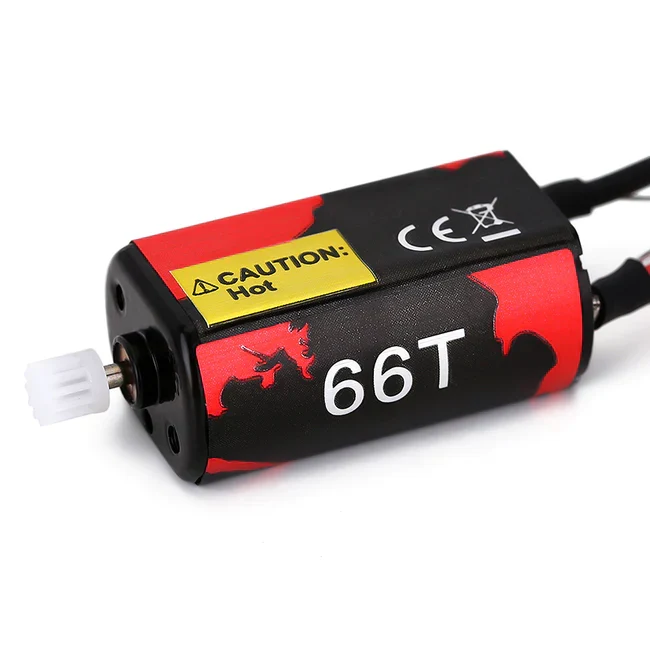

INJORA 050 66T Brushed Motor II for Axial SCX24
INJORA 030 050 Brushed Motor 66T 88T for 1:24 RC Crawler Axial SCX24 AXI90081 AXI00002 AXI00001 AXI00004 Upgrade Parts
Notes:
Features:
1. The motor shaft is shorter than before to ensure it doesn't touch the transmission cover.
2. After testing, we have adjusted the motor speed to make the motor more compatible with the SCX24
3. The upgraded material makes the motor perform better
4. Heat dissipation has been improved, extending the life of the motor.
Package List:
1 * RC Car Brushed Motor
Notes:
- 050 motors require a different mounting plate with 2 extra holes.
- 050 motors are longer than stock motor, so one of the battery tray posts needs to be cut off to fit.
Features:
- High Torque Magnet and Rotor
- Tuned for Rock Climbing
- Size: the same as the stock motor
- Turn: 88T
- Weight: 12g
- Rated Voltage: 7.4V
- Total length: 20mm / 0.79in
- Output Shaft Length: 5.1mm / 0.02in
- Output Shaft OD: 1.5mm / 0.06in
- Size: longer than stock motor
- Turn: 66T
- Weight: 19g
- Rated Voltage: 7.4V
- Total length: 28.5mm / 1.12in
- Output Shaft Length: 4.9mm / 0.19in
- Output Shaft OD: 1.5mm / 0.06in
- Size: longer than stock motor
- Turn: 50T
- Weight: 22g
- Rated Voltage: 7.4V
- Total Length: 28.5mm / 1.12in
- Output Shaft Length: 4.9mm / 0.19in
- Output Shaft OD: 1.5mm / 0.06in
- At No Load：Speed: 25500 rpm, Current: 0.36 A
- Lastest upgrade version, high torque strong magnet, provide increased power and torque.
1. The motor shaft is shorter than before to ensure it doesn't touch the transmission cover.
2. After testing, we have adjusted the motor speed to make the motor more compatible with the SCX24
3. The upgraded material makes the motor perform better
4. Heat dissipation has been improved, extending the life of the motor.
Package List:
1 * RC Car Brushed Motor
