Feature Packed & Versatile 11-Channel Surface Transmitter

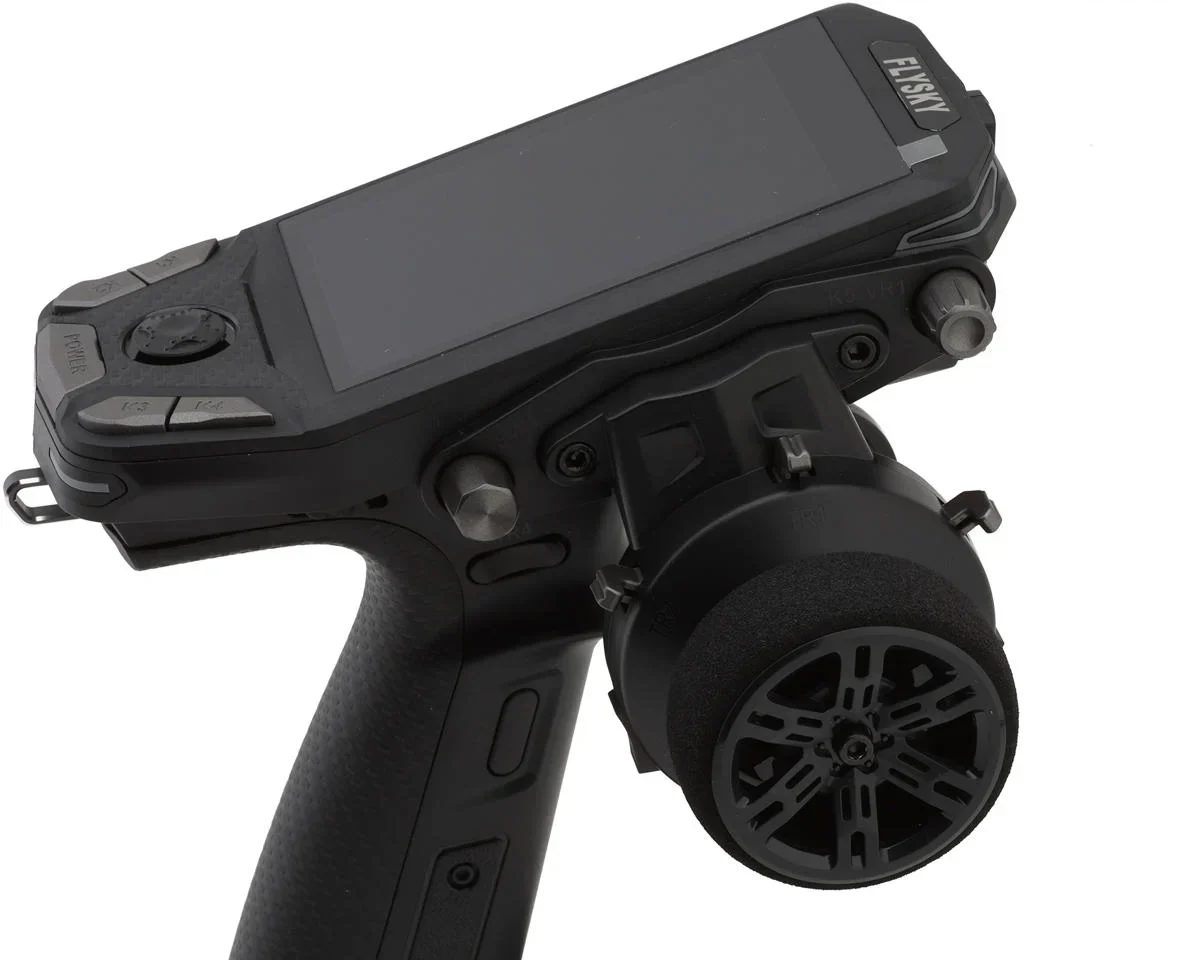

The Flysky G11P ANT 11-Channel 2.4GHz Transmitter is designed for precision control and versatility, making it an excellent choice for almost any RC surface vehicle. Featuring an ultra-bright 3.5-inch IPS display, dual omni-directional antennas, and an innovative ergonomic design, this transmitter delivers superior performance in any environment. With multi-channel support, flexible throttle options, and extensive compatibility with ANT multi-function receivers, the G11P is a powerhouse of control and customization.

About the G11P Transmitter

IPS High-Brightness Display

The G11P is equipped with a 3.5-inch 320×480 full-dot matrix IPS display, delivering 2000 nits of peak brightness for unparalleled outdoor visibility. This high-contrast, screen ensures clear readability even in intense sunlight, providing precise data feedback during operation.

Enhanced Signal Stability

Featuring built-in omni-directional dual antennas, the G11P offers reliable long-range transmission with minimal interference. Its adaptive frequency hopping and spread spectrum technology actively prevent signal conflicts, ensuring a stable connection and low-latency response for uninterrupted control.

Customizable Ergonomics & Controls

Designed for comfort and adaptability, the adjustable trigger return force allows users to fine-tune their throttle response. The handwheel features infinite positioning with physically adjustable travel distance, catering to different driving styles. The sleek metal handle, Kevlar-patterned finish, and rubberized grip provide a premium feel with superior control.

Multi-Channel Control & Advanced Programming

Powered by EdgeTX, the G11P supports up to 11 channels, allowing for precise control over a wide range of RC models. With programmable model memory for up to 40 sets, users can easily switch between different setups. The transmitter also features flexible throttle channel options, including three throttle curve modes with five adjustable points for fine-tuned response. Additionally, it is compatible with multiple i-BUS devices and ANT multi-function receivers, enabling advanced telemetry options like GPS, speed, altitude, and voltage monitoring for a fully customized experience.

Features:

• IPS high-brightness 3.5-inch color display (2000 nits)
• Built-in omni-directional dual antennas for stable signal transmission
• Adjustable trigger return force for customizable control
• EdgeTX software provides open source customizability & future proof updates
• Multi-color LED light control for added aesthetics
• Supports up to 11 channels for versatile model control
• Flexible throttle curve settings with three modes and five adjustment points
• Compatible with multiple ANT multi-function receivers
• Multi-functional USB-C port for firmware upgrades and battery charging
• Power-efficient design with up to 14 hours of standby time with standard 18650 batteries

Includes:

• (1) G11P ANT 11-Channel 2.4GHz Transmitter
• (1) R11P Receiver
• (1) Transmitter Handle
• (1) USB-C Charge Chord
• (1) User Manual
• Transmitter Accessory Parts

Needed to Complete:

• (2) 18650 LiIon or (1) 2S LiPo Battery* w/JST or XH Balance Lead

Specifications:

Application	Surface Vehicles
Band	2.4GHz
Modulation	2.4GHz ISM
Technology	ANT
Channels	11
Input Voltage	6-9V
Battery Compartment	2.75x1.49x0.67in (70x38x17mm)
Range	>985ft (300m)
